SPECsfs97_R1.v3 Result

VERITAS Software Corp. :VERITAS ServPoint NAS 1.2
SPECsfs97_R1.v3 =6602 Ops/Sec (Overall Response Time = 1.98 msec)

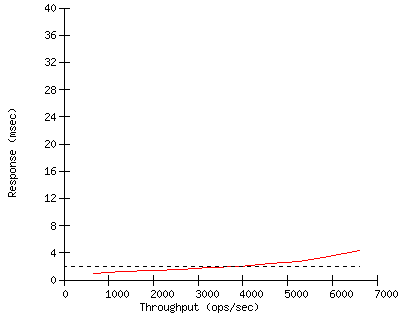

Performance Graph


Server Configuration and Availability
Vendor VERITAS Software Corp.
Hardware Available June 2001
Software AvailableSeptember 2001
Date TestedDecember 2001
SFS License Number65
Licensee LocationsMountain View, CA

CPU, Memory and Power
Model Name VERITAS ServPoint NAS 1.2
Processor 750 MHz UltraSPARC-III
# of Processors 2
Primary Cache 32KBI+64KBD on chip
Secondary Cache 8MB(I+D) off chip
Other Cache N/A
Other Hardware N/A
Memory Size 2 GB
NVRAM Size 8192MB (1024MB per Sun StorEdge T3B controller)
NVRAM Type Sun StorEdge T3B write cache
NVRAM Descriptionauto-sensing WB/WT depending on battery charge

Server Software
OS Name and VersionSolaris 8 4/01
Other Software VERITAS ServPoint Appliance Software for NAS 1.2
File System VxFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 1200
Fileset Size 62.8 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. Sun GigabitEthernet PCI adaptor
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type UDP

Switch Type Cisco 3500XL Switch
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 3
Number of Disks 73
Number of Filesystems 8 (F1-F8)
File System Creation Ops-F vxfs -o bsize=1024,logsize=16384
File System Config default

Disk Controller On-board FC-AL
# of Controller Type 1
Number of Disks 1
Disk Type Seagate Cheetah 36GB 10K RPM
File Systems on Disks OS, swap
Special Config Notes N/A

Disk Controller QLogic 2200
# of Controller Type 2
Number of Disks 72
Disk Type Seagate Cheetah 18GB 10K RPM
File Systems on Disks F1-4, F5-8
Special Config Notes Filesystem on RAID5 LUNs (see "Other Notes")

Load Generator (LG) Configuration
Number of Load Generators 8
Number of Processes per LG8
Biod Max Read Setting 3
Biod Max Write Setting 3

LG Type LG1
LG Model Sun Netra T1
Number and Type Processors1 x 440 MHz UltraSPARC
Memory Size 256 MB
Operating System Solaris 7
Compiler used SPEC-supplied precompiled binaries
Compiler Options N/A
Network Type On-board 100BASE-T

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1-8LG1N1/F1-8, /F1-8, /F1-8, ...N/A

Other Notes

Generated on Wed Feb 6 15:04:23 2002 by SPEC SFS97 HTML Formatter
Copyright © 1997-2001 Standard Performance Evaluation Corporation

First published at SPEC.org on 06-Feb-2002
