SPECsfs97_R1.v3 Result

Network Appliance, Inc. :FAS6070A
SPECsfs97_R1.v3 =136048 Ops/Sec (Overall Response Time = 1.09 msec)

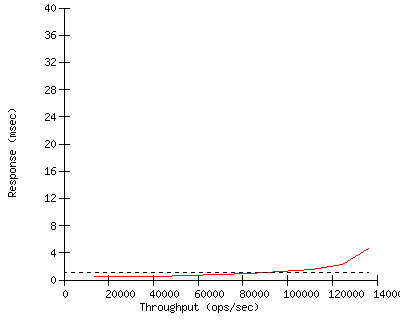

Performance Graph


Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available March 2006
Software AvailableAugust 2006
Date TestedApril 2006
SFS License Number33
Licensee LocationsSunnyvale, CA

CPU, Memory and Power
Model Name FAS6070A
Processor 2.6-GHz AMD Opteron(tm) 852
# of Processors 8 cores, 8 chips, 1 core/chip
Primary Cache 64 KB I + 64 KB D on chip
Secondary Cache 1 MB (I+D) on chip
Other Cache N/A
UPS none
Other Hardware X3148-R5 NVRAM/cluster interconnect adapter (see notes)
Memory Size 64 GB (32 GB per node)
NVRAM Size 4 GB (2 GB per node)
NVRAM Type DIMMs on PCI cards
NVRAM Descriptionminimum 7-day battery-backed shelf-life

Server Software
OS Name and VersionData ONTAP 7.2
Other Software Cluster Option
File System WAFL
NFS version 3

Server Tuning
Buffer Cache Size default
# NFS Processes N/A
Fileset Size 1310.5 GB

Network Subsystem
Network Type Jumbo Frame Gigabit Ethernet
Network Controller Desc. integrated 10/100/1000 Ethernet controller
Number Networks 2 (N1,N2)
Number Network Controllers4 (2 per node)
Protocol Type TCP

Switch Type Cisco 7609 (N1,N2)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 8 (4 per node)
Number of Disks 224
Number of Filesystems 2
File System Creation Opsdefault
File System Config 7 RAID-DP (Double Parity) groups of 16 disks each

Disk Controller integrated dual-channel QLogic ISP-2322 FC Controller (4MB RAM standard)
# of Controller Type 8 (4 per node)
Number of Disks 28/28/28/28/28/28/28/28
Disk Type X273B 72GB 15K RPM FC-AL
File Systems on Disks F1/F1/F1/F1/F2/F2/F2/F2
Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators 20
Number of Processes per LG28
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model IBM HS20 884325U
Number and Type Processors2 x 3.2-GHz Intel Xeon
Memory Size 2048 MB
Operating System Red Hat Enterprise Linux AS release 4 (2.6.9-5.ELsmp)
Compiler cc, used SFS97_R1 Precompiled Binaries
Compiler Options N/A
Network Type Integrated Dual Channel Broadcom Gigabit Ethernet

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes

Other Notes

Generated on Tue May 9 15:02:12 2006 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 09-May-2006
