SPECpower_ssj2008
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY RX100 S8 (Intel Xeon E3-1265Lv3) | SPECpower_ssj2008 = 6,137 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Paderborn, NRW, Germany | Test Date: | Oct 14, 2013 |
| Hardware Availability: | Nov-2013 | Software Availability: | Jun-2012 | Publication: | Nov 13, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

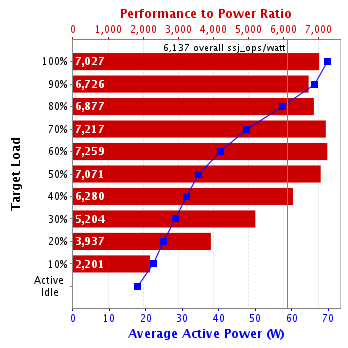

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 100.1% | 490,149 | 69.8 | 7,027 |
| 90% | 90.9% | 444,960 | 66.2 | 6,726 |
| 80% | 80.6% | 394,420 | 57.4 | 6,877 |
| 70% | 70.3% | 344,398 | 47.7 | 7,217 |
| 60% | 59.8% | 292,836 | 40.3 | 7,259 |
| 50% | 49.7% | 243,380 | 34.4 | 7,071 |
| 40% | 40.0% | 195,626 | 31.2 | 6,280 |
| 30% | 30.0% | 146,764 | 28.2 | 5,204 |
| 20% | 20.0% | 98,054 | 24.9 | 3,937 |
| 10% | 10.0% | 48,739 | 22.1 | 2,201 |
| Active Idle | 0 | 17.7 | 0 | |
| ∑ssj_ops / ∑power = | 6,137 | |||
| Set Identifier: | RX100 S8 |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | Single Node |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY RX100 S8 (Intel Xeon E3-1265Lv3) |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon E3-1265Lv3 |
| CPU Characteristics: | 4-Core, 2.50GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.70 GHz) |
| CPU Frequency (MHz): | 2500 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 MB |
| Memory Details: | 4 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B populated |
| Power Supply Quantity and Rating (W): | 1 x 300 |
| Power Supply Details: | Fujitsu Technology Solutions S26113-E614-V70 |
| Disk Drive: | 1 x 250GB, HDD, 2.5" SATA, S26361-F3816-E250 |
| Disk Controller: | Integrated SATA Controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Intel I210 Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled ("Fujitsu Enhanced Power Settings" power plan) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise SP1 |
| OS Version: | Version 6.1.7601 Service Pack 1 Build 7601 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xmx1024m -Xms1024m -Xmn800m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu |
| JVM Affinity: | start /AFFINITY [0x3,0xC,0x30,0xC0] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1024 |
| JVM Maximum Heap (MB): | 1024 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | R1.5.0 |
| Management Firmware Version: | 7.10F |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY RX200 S6 |
| CPU Description: | Intel Xeon X5680 |
| Memory amount (GB): | 48 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise SP1 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 23.25-b01, mixed mode) |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | ZES Zimmer Electronic Systems GmbH |
| Model: | LMG95 |
| Serial Number: | 11780806 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Metrology Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | Atlas Copco Tools Central Europe GmbH |
| Calibration Label: | W13088002 |
| Date of Calibration: | 20-Aug-2013 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.6.1-ddf12a8b-20130626 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 69.8 | 20.2 |
| 90% | 66.2 | 20.2 |
| 80% | 57.4 | 20.2 |
| 70% | 47.7 | 20.2 |
| 60% | 40.3 | 20.2 |
| 50% | 34.4 | 20.2 |
| 40% | 31.2 | 20.2 |
| 30% | 28.2 | 20.2 |
| 20% | 24.9 | 20.2 |
| 10% | 22.1 | 20.2 |
| Active Idle | 17.7 | 20.2 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 230V / 50 Hz / 1 phase / 2 wires | 20.2 | 117 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 473,813 | ||
| Calibration 2 | 489,232 | ||
| Calibration 3 | 489,879 | ||
| ssj_ops@calibrated=489,555 | |||
| 100% | 100.1% | 489,555 | 490,149 |
| 90% | 90.9% | 440,600 | 444,960 |
| 80% | 80.6% | 391,644 | 394,420 |
| 70% | 70.3% | 342,689 | 344,398 |
| 60% | 59.8% | 293,733 | 292,836 |
| 50% | 49.7% | 244,778 | 243,380 |
| 40% | 40.0% | 195,822 | 195,626 |
| 30% | 30.0% | 146,867 | 146,764 |
| 20% | 20.0% | 97,911 | 98,054 |
| 10% | 10.0% | 48,956 | 48,739 |
| Active Idle | 0 | 0 | |
